The Revolution Max 975T motor is fully blacked-out, with contrasting matte and gloss finishes and newly non-highlighted fins, for a factory finish that looks as aggressive as it is.

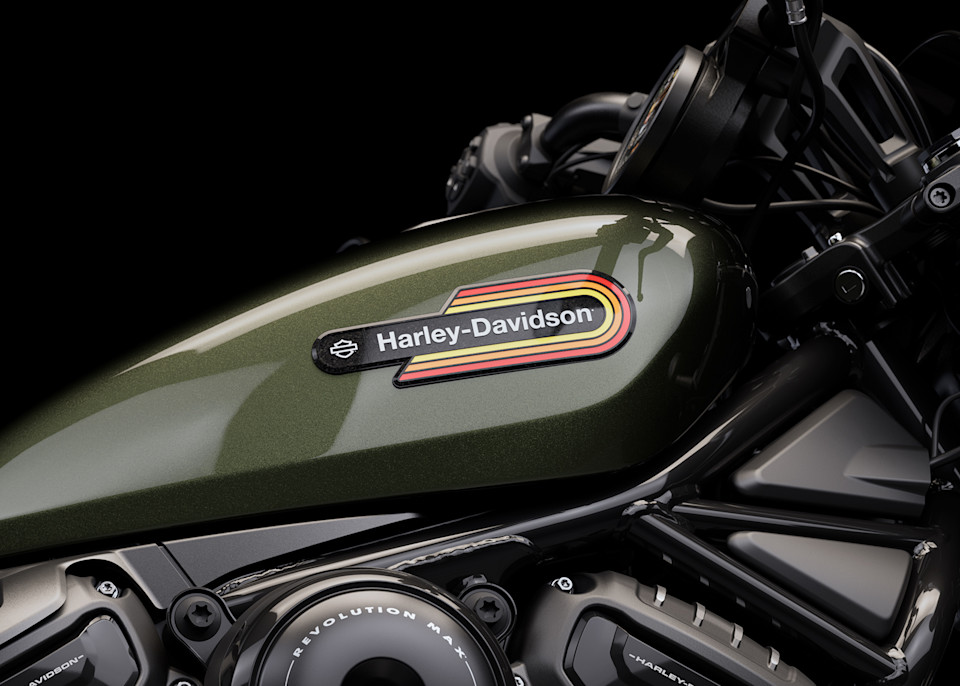

A flat tank-to-fender line and peanut-shaped air cover pull from classic Sportster DNA, topped with a ’70s-inspired tank graphic.

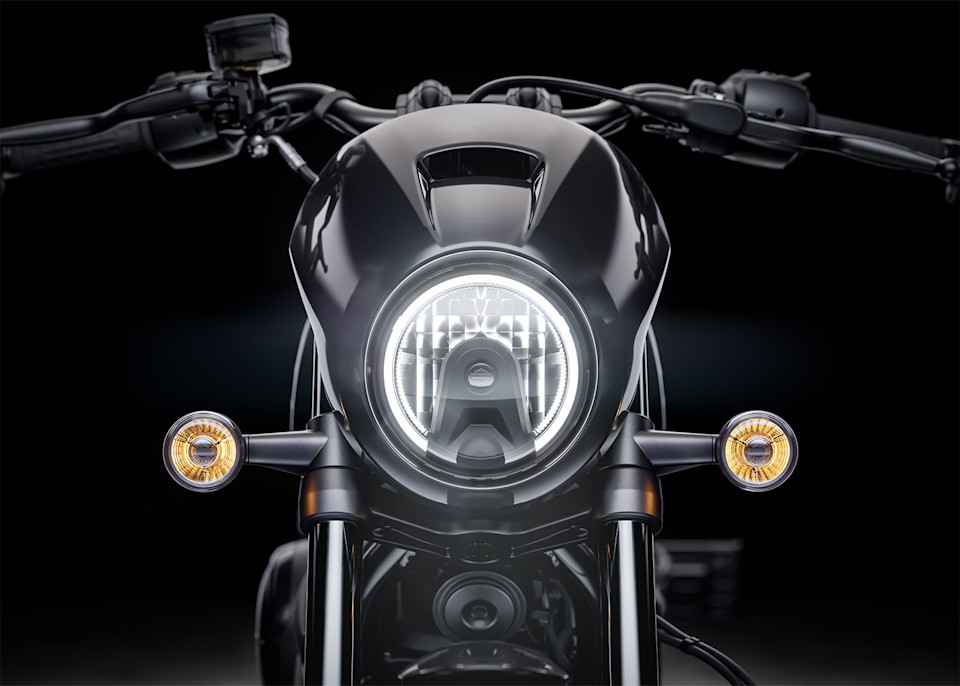

Born from West Coast club style, the headlight mini-fairing adds wind-cutting function to the Nightster Special’s aggressive, “tough guy” silhouette, while full LED lighting keeps that stance lit and visible long after the sun’s down.

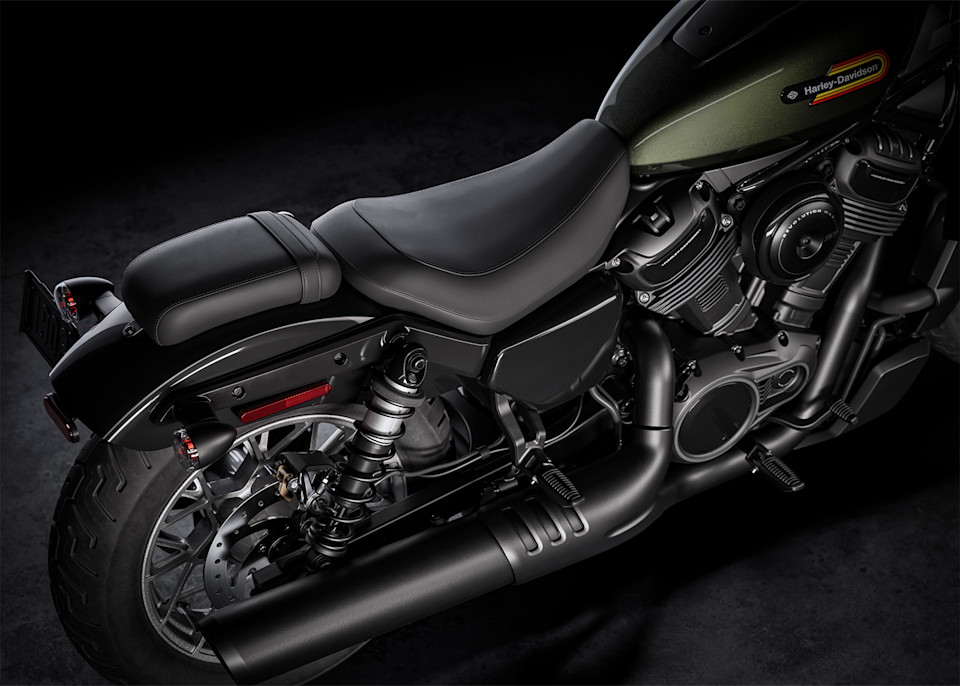

Standard pillion pad and footpegs let you bring someone along, or strip it back for a solo stance.

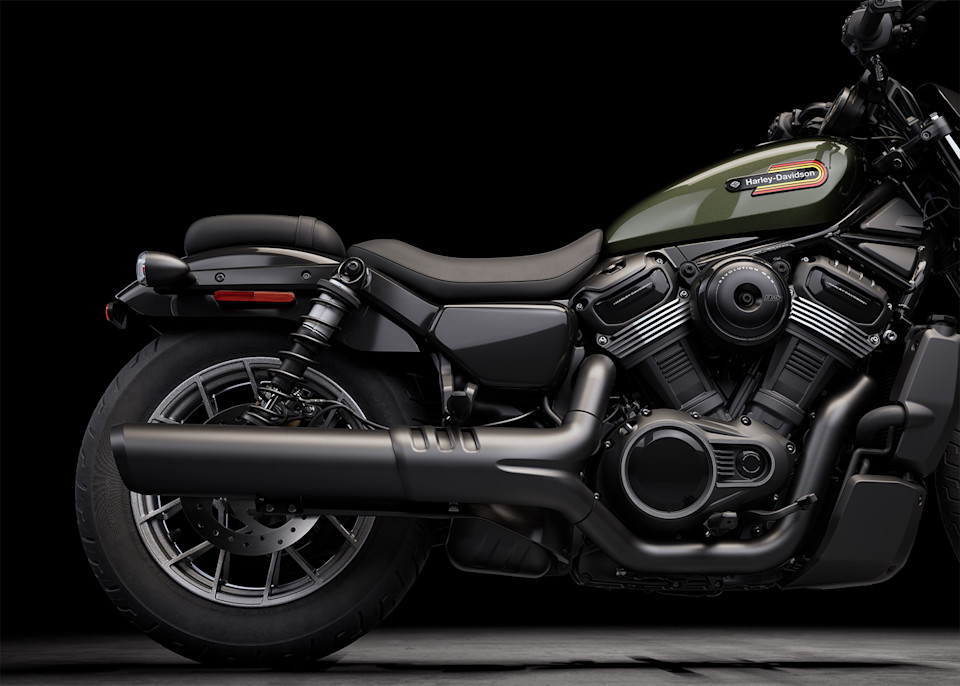

At 225 kg with the tank under the seat, the Nightster Special stays planted yet agile, whether filtering through traffic or carving backroads.
Liquid-cooled and quick to spin up, the Revolution Max 975T packs 89 HP with torque you’ll feel punching out of corners and winding out on the open road.

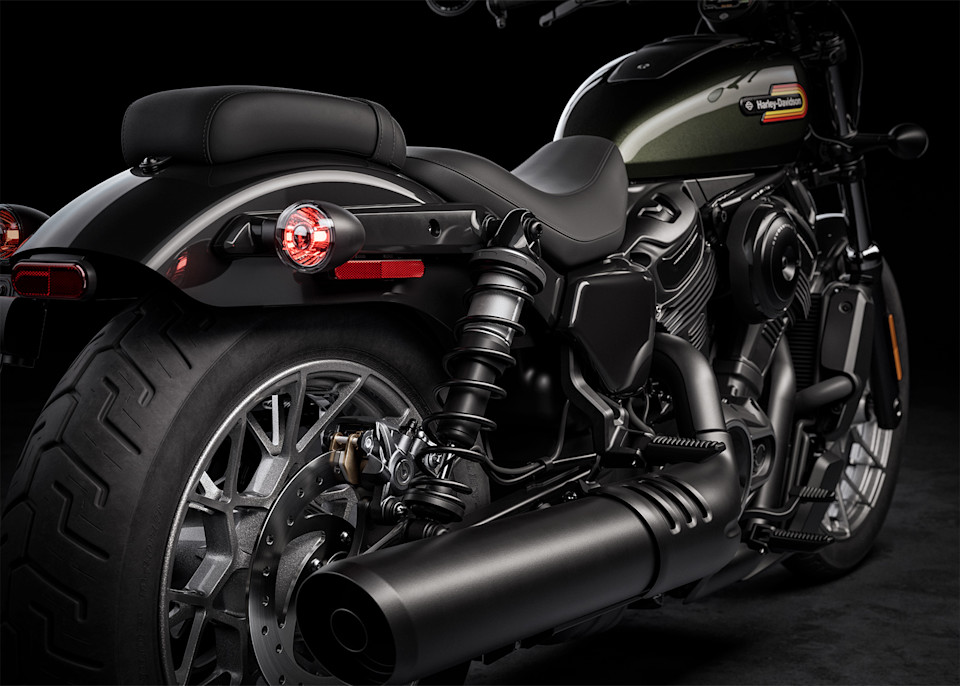

More travel than legacy Sportsters means a smoother, more powerful ride, all while keeping the twin-shock look that’s pure Harley heritage.

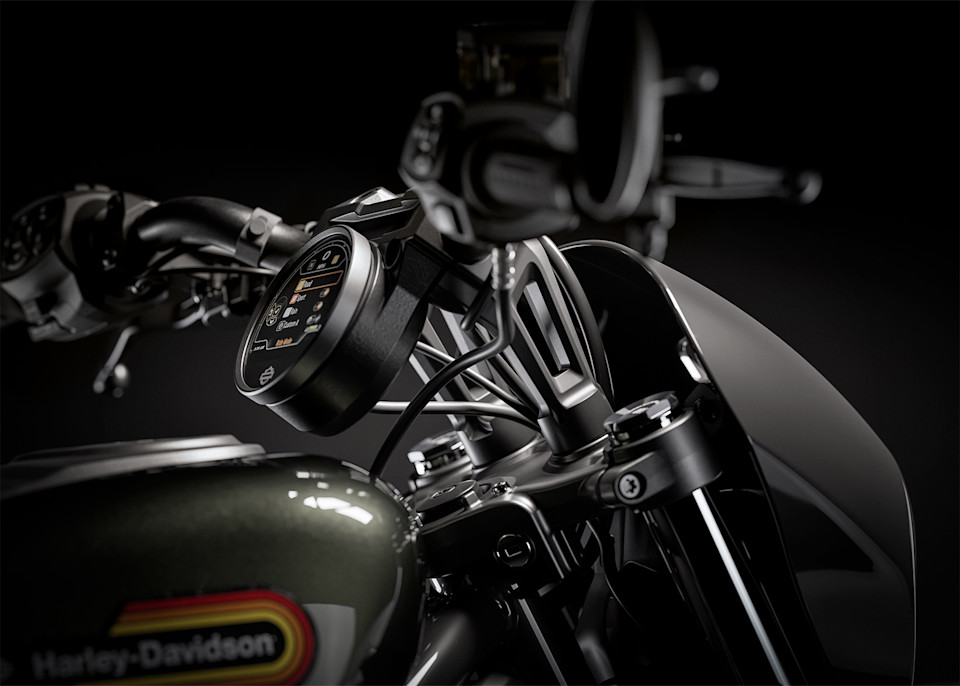

High-rise bars with 127 mm risers put you in a tall, commanding position, giving you leverage in the curves and comfort for when you feel like smashing slab and eating miles.

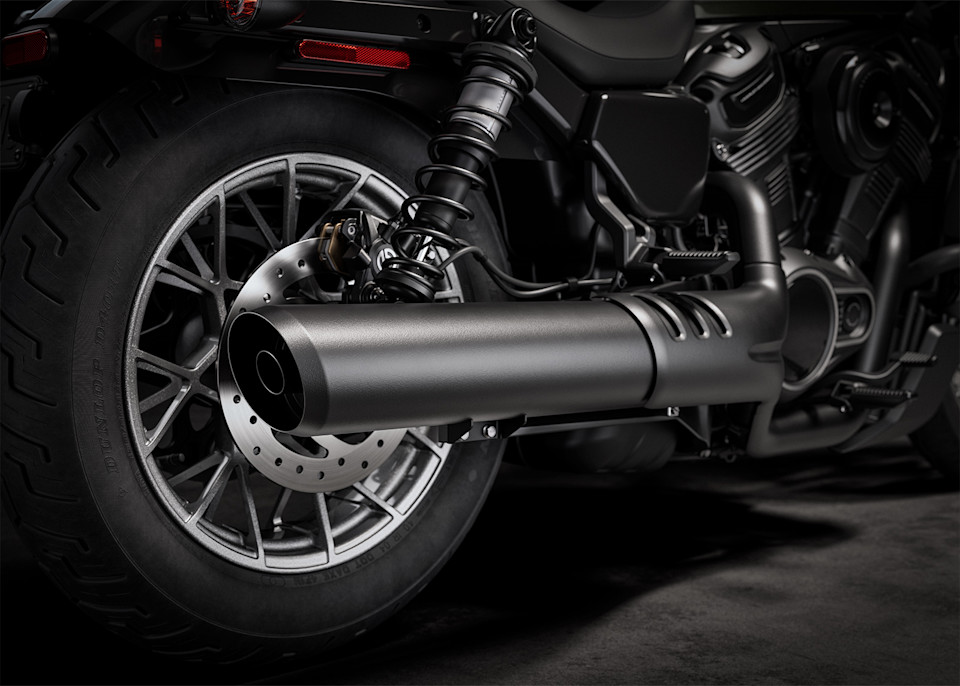

One of the most efficient ways to get performance out of a V-Twin, the Nightster Special’s two-into-one system is tuned for smooth flow, strong acceleration, and a sharper, more aggressive exhaust note.

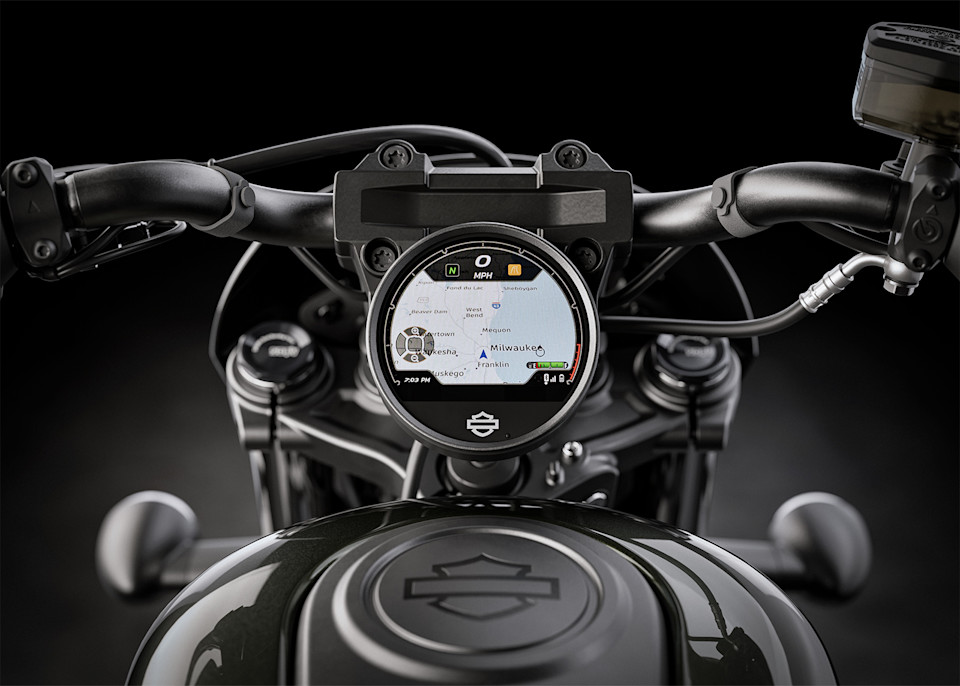

Glove-friendly, Bluetooth™-enabled display keeps navigation, bike data, and media right where you need them.

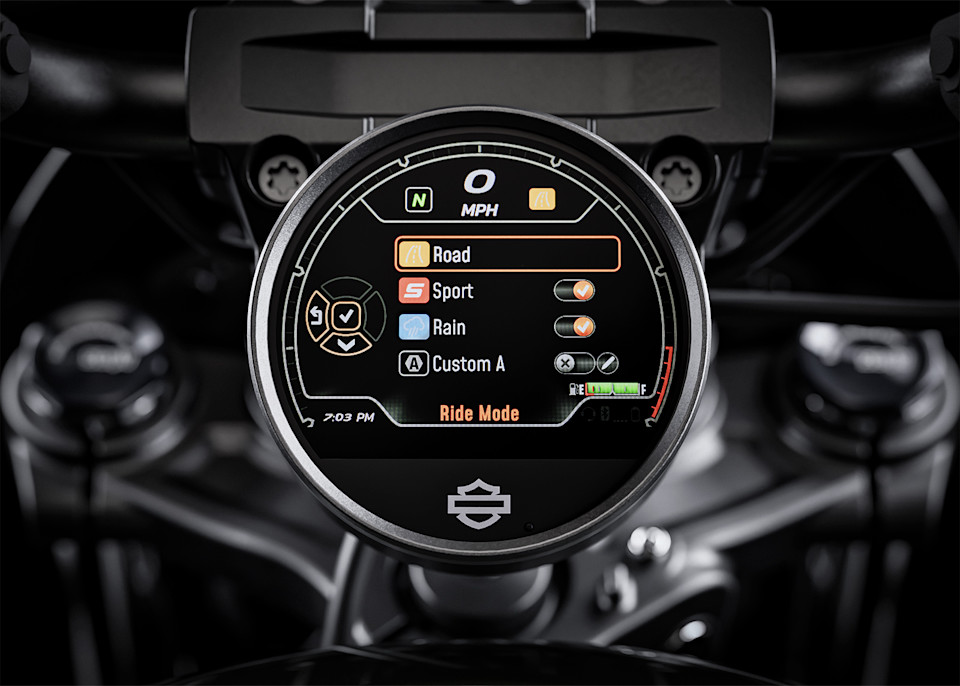

Road, Rain, Sport, or two custom modes the Nightster Special adapts instantly to how and where you ride. ABS, traction control, drag-torque slip control, TPMS, and standard cruise control add confidence and comfort, whether you’re stretching the bike’s legs across an open highway or watching the sun drop behind the backroads.
| BILLIARD GRAY | 558,000 THB |
|---|---|
| COLOR | 565,000 THB |
| PREMIUM COLOR | 566,000 THB |
| Engine | Revolution™ Max 975T |
|---|---|
| Bore | 97 mm |
| Stroke | 66 mm |
| Displacement | 975 cc |
| COMPRESSION RATIO | 12:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-into-1; catalyst in header |
| Length | 2,265 mm |
|---|---|
| Width | 860 mm |
| SEAT HEIGHT, UNLADEN | 715 mm |
| GROUND CLEARANCE | 120 mm |
| RAKE | 30 |
| TRAIL | 137 mm |
| WHEELBASE | 1,545 mm |
| TIRE, TYPE | Dunlop™ Harley-Davidson Series Bias Blackwall |
| TIRES, FRONT SPECIFICATION | 100/90-19 57H |
| TIRES, REAR SPECIFICATION | 150/80B16 77H |
| FUEL CAPACITY | 11.7 l |
| OIL CAPACITY (W/FILTER) | 4.5 l |
| WEIGHT, IN RUNNING ORDER | 225 kg |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 95 Nm |
| Engine Torque (rpm) | 5,750 |
| HORSEPOWER | 89 HP / 66 kW @ 7500 rpm |
| Lean Angle, Right (deg.) | 32 |
| Lean Angle, Left (deg.) | 32 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 5.5 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 130 g/km CO2 |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 12.21 |
| Gear Ratios (overall) 2nd | 9.022 |
| Gear Ratios (overall) 3rd | 6.994 |
| Gear Ratios (overall) 4th | 5.641 |
| Gear Ratios (overall) 5th | 4.731 |
| Gear Ratios (overall) 6th | 4.131 |
| FRONT FORK | 41mm SHOWA™ |
|---|---|
| REAR SHOCKS | Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment. |
| Wheels, Front Type | Aluminum cast, silver |
| Wheels, Rear Type | Aluminum cast, silver |
| BRAKES, CALIPER TYPE | Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper |
| BRAKES, ROTOR TYPE | Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor |
| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
|---|---|
| Gauges | 102 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| SCREEN SIZE | 102 mm |
|---|---|
| TYPE | Color TFT |
| Headset Specifications (if equipped) | Bluetooth |
| LANGUAGES | English (default) |
| Hands-free Mobile Phone – via Bluetooth | Standard |
| Voice Recognition Languages: Phone functions only | Phone dependent |
| Voice Recognition Languages: Tuner/Media/Navigation | Phone dependent |
| Rider/Passenger Intercom | Headset function only |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
| Text-to-Speech (TTS) Languages | Phone dependent |
| USB | Charging and Instrument update, USB-C, 5V, 3A |
| Bluetooth | Phone/Media Supported |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| Tire Pressure Monitoring System (TPMS) | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
